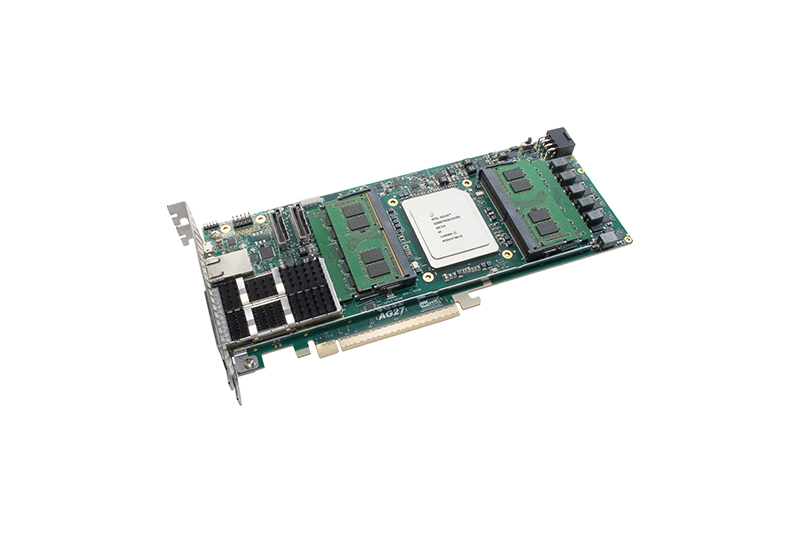

Intel Agilex? 7 SoC FPGA I-Series AGIB027R29A2E2V
Two QSFP-DD Ports and Two MCIO 8x Connectors
Four Independent DDR4 SODIMM
HPS System inclues pheriperal DDR4, SD card, UART, USB, Ethernet
Intel Agilex 7 SoC FPGA F-series AGFB027R24C2E2V
QSFP28 port and FMC+ expansion connector
Two independent DDR4 banks
HPS system includes pheriperal DDR4, SD card, UART and Ethernet
The Intel Agilex? 7 FPGA I-Series Transceiver SoC development kit delivers a complete design environment that includes both hardware and software for developing with Intel Agilex? 7 FPGA I-Series that contain 4x F-Tiles.
Intel? Agilex? I-Series FPGA Development Board
PCIe x16 Gen 5 golden finger connected to R-Tile transceivers
Supports PCIe, CXL, or PIPE modes
PCIe AIC form-factor: ? length, full height, dual-width
2X DDR4 DIMMs sockets
Support single channel, 72 bits, 2-DPC, DDR4/DDR-T module
1X 16GB SR DDR4 DIMM module (included with kit)
2X 8GB SR DDR4-2666 components
soldered to board, 72 bits each channel
2X standard quad small-form-factor pluggable double density (QSFP-DD) cages connected to F-Tile
2X MCIO x8 connectors interfaced to another R-Tile (MCIO cables & daughter-cards not included)
Active fan, AC adapter power and USB cables
The Intel Agilex? 7 FPGA development kit provides a hardware development platform for evaluating the performance and features of the Intel Agilex? 7 FPGA F-Series with two F-tiles. It is a general purpose evaluation board in PCIe form factor with HPS hardware features.
Intel Agilex? SoC Standalone Module with onboard USB-Blaster II
FMC+ and FMC connectors for expansion
Support two independent 32GB DDR4 with ECC and one on-board QSFP28 connector
Ideal for Prototyping, Industrial Control System
The Intel Agilex? 7 FPGA F-Series development kit delivers a complete design environment that includes all the hardware and software within a PCI Express (PCIe) form factor you need to start taking advantage of the performance and capabilities available in Intel Agilex? 7 FPGA F-Series FPGAs with P-Tile and E-Tile for your design needs.
The Intel Agilex? 7 FPGA F-Series Transceiver-SoC development kit offers a complete design environment that includes hardware and software for developing Intel Agilex? 7 FPGA F-Series designs. This kit is recommended for developing custom Arm processor-based SoC designs and evaluating transceiver performance.
Intel? Agilex? F-Series FPGA AGFB014R24B2E2V
Two QSFPDD connectors for 200/100/40/25/10 GbE network interface
Four independent DDR4 SODIMM sockets
